Nemo GRABO Classic - The electric suction cup

Video Nemo GRABO suction cup
This is the Classic GRABO tool of 2021, equipped with a mechanical pressure gauge that is protected by a rubber covering.
  • Nemo GRABO Suction Cup
  • Nemo GRABO powered vacuum lifter side
  • Top of Nemo GRABO lifting tool
Explore Product

Nemo GRABO Classic kit

When you buy The Nemo GRABO Classic version, you are buying peace of mind. Therefore, every Nemo GRABO tool comes as a complete unit, with a pre-installed battery and vacuum seal.

To ensure that you don’t have to bother with finding the right supplies, a multi-socket charger is included in the kit. We pay attention to every detail, therefore to make your life easier we’ve included a heavy-duty carry bag in the kit, so you can keep all the components and accessories in one place.

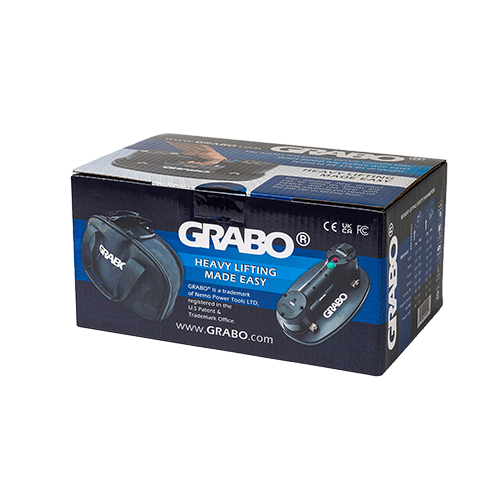

The complete kit is packaged in a functionally designed colorful box that can easily fit in any tool kit or small compartment, making storage easy.

Package Contents:

  • 1 Classic GRABO tool (2021 Version — Complete with battery and seal)
  • 1 mechanical built-in pressure gauge with protective rubber coating
  • 1 multi-socket charger
  • 1 seal (pre-installed on the tool)
  • 1 battery (pre-installed on the tool)
  • 1 tough Oxford fabric carry bag
  • Operator’s manual in English
  • GRABO glass vacuum lifter bag
  • Nemo GRABO tool in bag

Lifting Capacity:

Perpendicular Hold parallel lifting by Nemo GRABO vacuum Parallel Hold Suction cup lifting box
Glass 375Lbs ( 170 kg ) 265Lbs ( 120 kg )
Ceramic Tiles 375Lbs ( 170 kg ) 265Lbs ( 120 kg )
Metal 242Lbs ( 110 kg ) 242Lbs ( 110 kg )
Plastic 220Lbs ( 100 kg ) 220Lbs ( 100 kg )
Wood 220Lbs ( 100 kg ) 143Lbs ( 65 kg )
Rough Slate 176Lbs ( 80 kg ) 176Lbs ( 80 kg )
Rough Concrete 176Lbs ( 80 kg ) 176Lbs ( 80 kg )
Dry Wall 165Lbs ( 75 kg ) 143Lbs ( 65 kg )
Nemo GRABO is the world's first portable vacuum lifter. With this best in a class power tool, we live up to our promise of “Heavy Lifting – Made Easy”. Now you don’t have to rely on bulky and complex heavy-lifters. Neither need you worry about unreliable, and often dangerous, manual suction cups for the job. With GRABO you get the best of both worlds.

The Nemo GRABO Classic is an ideal lifting tool for countertops, doors, panels, etc. The tool works perfectly with glass, wood, ceramic tiles, metals, and other materials. The tool works at a maximum vacuum capacity of 11.6 psi, with an optimum lifting capability of loads as heavy as 375 lbs or 170 kgs.

Nemo GRABO is ergonomically designed to provide maximum work efficiency. It is lightweight and can be easily carried around in a tool kit. It is not just the portability that makes the tool unique, but it is the simple operation, performance, and overall build quality that make it premium. The tool is a game-changer for professionals in the building and construction industry.
GRABO Classic is equipped with a strong vacuum pump, that works in tandem with a robust foam seal. To lift any flat slab of solid material, simply turn on the unit and place it straight on the surface.

Nemo GRABO is ergonomically designed to provide maximum work efficiency. It is lightweight and can be easily carried around in a tool kit. It is not just the portability that makes the tool unique, but it is the simple operation, performance, and overall build quality that make it premium. The tool is a game-changer for professionals in the building and construction industry.

GRABO Classic is equipped with a strong vacuum pump, that works in tandem with a robust foam seal. To lift any flat slab of solid material, simply turn on the unit and place it straight on the surface.

Once the vacuum pump is activated, it creates a strong suction and firmly attaches to any non-porous flat surface. This makes lifting panels or slabs, or even objects of different materials, an easier job. For maximum lifting, the vacuum pump can be kept activated even while lifting or moving the load.

Detailed sizes nemo grabo

The vacuum pump can also be turned off while moving a load that does not have too much mass. However, keeping the vacuum pump activated while transferring material also provides for maximum safety as even if there is an air leak due to foreign material or dirt on the material, then the continuous vacuum pump action maintains constant pressure.

A rubber protected pressure gauge allows the user to monitor the vacuum pressure level in accordance with the lifting capacity for any given material.

Once you have finished moving and placing the object, simply press the red vacuum release button to release the vacuum and move on to the next object to be lifted.This means less labor and enhanced working speed.

The tool operates on 14.8 volts 2600 mAh Li-ion removable battery. The battery takes two hours for a full charge. On a full charge, this powerful battery can last for 900 cycles or 1.5 hours of non-stop running, and 30 days on standby mode.

The Nemo GRABO Classic tool is also equipped with four lifting lugs placed on both sides of the grab handle. These lugs become handy in case the tool is to be used with additional grips or straps for support. Many such accessories are available separately.

The tool is a must-have for professionals in the construction industry. Many builders and construction professionals are rapidly adapting to Nemo GRABO. The reason is simple. Not only do they get enhanced efficiency, but they also save on labor costs.

More importantly, it is the safety of their colleagues and associates, provided by the tool, that is pushing them to get more of these Nemo GRABO tools.

Holding Nemo GRABO vacuum cup

Specifications:

Model/SKUNEMO GRABO / NG-2B-FB
Battery14.8VDC 2600mAh Li-ion
Rated Power16W
Charger Input Voltage100-240VAC 50/60Hz
Battery Charging Time~2hrs
Non-Stop Running Time (Full Charge)1.5hrs
Running Cycles (On Full Charge)900 ON-OFF cycles of 10 seconds
Stand-by Mode (Charge Hold)30 days
Pump Service Life100000+ ON-OFF cycles / 800+ hrs continuous
Rated Air Flow0.7cfm (20 L/min)
Maximum Vacuum Rate11.6Psi (0.8 Bar, 80 kPa)
Maximum Lifting Capacity375Lbs (170 kg)
L x W x H12.1 x 7.37 x 4.91” ( 297 x 181 x 121 mm )
Net Weight (With Battery)3.3Lbs (1.6 kg)
Working Temperature32°F~140°F ( 0°~60 °C )
Applicable Surface TypePeak/valley heights less than 0.1” (3mm),
arc less than 5°


GRABO Comparison Chart


ModelNEMO GRABOGRABO PRO-LIFTER 20GRABO H
FUNCTIONAL PARAMETERS
Battery14.8VDC 2600mAh Li-ion14.8VDC 2600mAh Li-ion11.1VDC 2000mAh Li-ion
Rated Power16 W
Charger Input Voltage100-240VAC 50/60Hz
Battery Charging Time~2hrs
Non-Stop Running Time (Full Charge)90 Min90 Min60 Min
Running Cycles (ON-OFF Cycles of 10 Seconds On Full Charge)900900340
Stand-by Mode (Charge Hold relates to battery, not to the pump)30 Days30 Days25 Days
Pump Service Life (Charge Hold)100000+ ON-OFF cycles / 800+ hrs continuous action
With Automatic OFF SwitchNoYesNo
Rated Air Flow0.7cfm ( 20 L/min )0.7cfm ( 20 L/min )0.5cfm ( 15 L/min )
Maximum Vacuum Rate11.6Psi ( 0.8 Bar, 80 kPa )
PHYSICAL LIMITATIONS
Maximum Lifting Capacity375Lbs ( 170 kg )375Lbs ( 170 kg )330Lbs ( 150 kg )
L x W x H11.67 x 7.12 x 4.76” (297 x 181 x 121 mm)11.77 x 7.22 x 4.76” (300 x 184 x 121 mm)11.67 x 7.12 x 4.76” ( 297 x 181 x 121 mm )
Net Weight (With Battery)3.3Lbs ( 1.6 kg )3.2Lbs ( 1.5 kg )2.6Lbs ( 1.2 kg )
Working Temperature32°F~140°F ( 0°~60 °C )
KIT
Gauge TypeMechanical With Protective Rubber CoverSmart Digital Pressure SensorNo Gauge
Number of Batteries111
ChargerMulti Socket Charger
Number of Seals1 in Total1 in Total1 in Total
Warranty1 Year Basic Warranty as outlined on WWW.GRABO.COM1 Year Basic Warranty as outlined on WWW.GRABO.COM1 Year Limited Warranty as outlined on WWW.GRABO.COM
MiscellaneousUse for all surface types, without automatic stop function, without display and electronic pressure gaugeUse for all surface types, with automatic stop function at 11.6Psi, with digital display and electronic pressure gaugeUse for all surface types, with smaller battery, without automatic stop function, without display and pressure gauge, without strap eyelets
